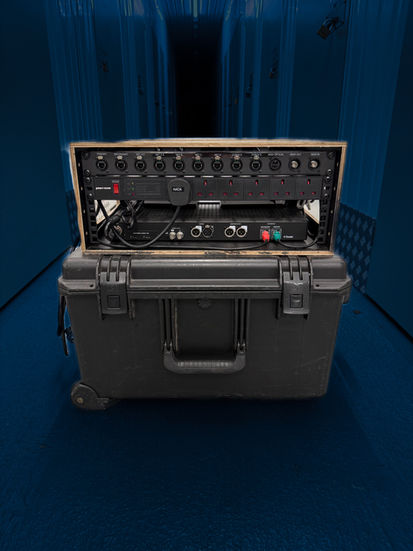

The Link (32ch, MADI, Dante, UAD Vocal Processing, MIDI)

The Link is a versatile playback, UAD vocal processing and MIDI system intended for off stage arena level deployment which can either standalone or pair with another playback system to offer 16 channels of UAD Vocal Processing & MIDI expansion.

The Link on its own can be setup to offer a redundant digital playback MADI / Dante bridge solution using the Dante Virtual Soundcard paired with the UAD Apollo X16-D with anything between the following example configurations -

16 redundant playback x 16 UAD processing channels
24 redundant playback x 8 UAD processing channels
30 redundant playback x 2 UAD processing channels

It can also be used as a FOH or Mons MADI / Dante bridge to access the UAD processing over MADI if required or paired with another system to give 16 mic processing inputs, it is a hugely versatile system.

The Link features:

- 32 output channels of auto switching redundant playback over MADI and / or Dante
- 16 channels of UAD processing
- MADI / Dante bridge
- 1 MIDI DIN input / output, 1 USB MIDI connection
- Redundant network connections
- BNC, CAT5e audio connections
- Works worldwide on any voltage / frequency with interchangable IEC power connections

The Link requires a 1x Thunderbolt 3 / 1x network connection per laptop and 1x power connection for the rack.

The Link can be hired with or without 2x Macbook Pro computers, MIDI controllers and expansion network cabling for stage MIDI use.

Where would I use this system?

The Link is an appropriate playback / vocal processing system for an act or show which requires a larger channel count with digital output formats but still needs a portable solution. It has been used in the past as an autotune rig for a tour with 8 singers for example, it would be suitable for all levels of show where the playback rack lives offstage. This could also be a possible choice for FOH engineers looking to adapt UAD plugins at FOH with 2 choices of digital connections.

Expansion options -

- The Standwick system can offer 32 channels of playback alongside The Link whilst remaining in the digital realm and adding analogue outputs if needed.
- The Wayne Tuney system can offer 2 channels of redundant UAD processing in the analogue domain.
- The Stage MIDI System can make use of the network MIDI ports to offer MIDI connectivity accross stage at 3+ different stations with the added benefit of PoE.
- The Tiny system can act as a redundant keys or instrument host if your show requires seperation between playback and live instrument hosting.
